75mm Rocket Pocket Door Kit

75mm Rocket Pocket Door Kit

£165.00 - £167.00

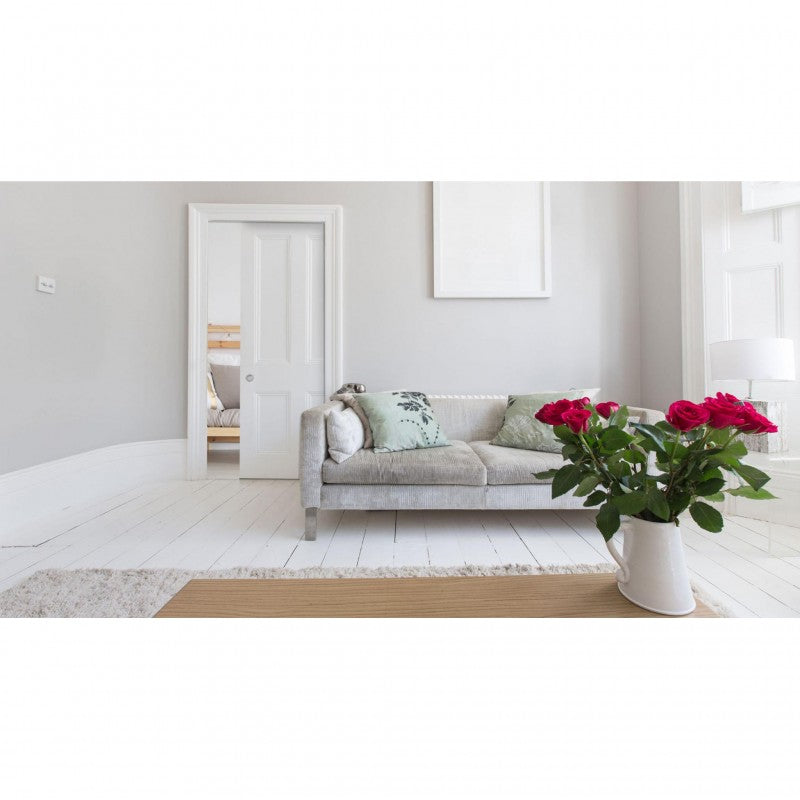

  • Please welcome the 75mm pocket door kit, which when fully opened is virtually invisible and saves much more space than a traditional door. Pocket doors can save on floor space thanks to their ability to slide effortlessly into the wall rather than swinging outwards. This can be particularly useful in small spaces like ensuites, dressing rooms and older style, small kitchens.
  • This kit is suitable for:
  • 35-44mm thick doors
  • Up to 60 KG in weight per door
  • Fits 75mm & 100mm timber stud
  • 12.5 standard plasterboard
  • DOUBLE DOORS - just order two singles (joining brackets included in each single kit). Its so easy, each single Rocket Pocket system has an adaptable bracket that ben be used to connect two singles and make them a double so there is no extra cost for a joining kit.  When Installing a double system remember to ensure both systems are perfectly in line and plumb and then the doors will meet exactly in the middle.

    This kit includes:
  • All the galvanised steel uprights and horizontals required to build the pocket, plus the track
  • The brackets to fit the frame to the stud work that double as plasterboard positioners and supports
  • Adjustable pocket entrance floor guide
  • Runners with carbon steel 'sealed for life' bearings
  • A spring steel door brake (soft close option available click here)
  • A LIFETIME WARRANTY
  • Door Jambs / Linings Order separtely here for 95 or 125 mm finished wall thickness.

    What do you need to supply?

  • Door Panel 35 or 44mm thick, max weight 60kg
  • 75mm studwork (see stud tab above) or 100mm studwork
  • Plasterboard
  • Delivery Information - All deliveries are 4-7 days postcode dependant. Always booked in 1-2 days prior.
  • The Rocket Pocket kit comes in a few specific sizes, each made for a standard UK door size so you can choose the door you want and it fits first time, every time!!
  • Max door weight is 60kg which covers most standard doors.  For a double door just buy two singles, they come with a joining bracket completely free of charge with each unit.
  • Installation info available on request.

STUD DOOR PANEL OVERALL DIMS PASSAGE
(WITHOUTJAMBS)		 POCKET FINISHED PASSAGE
(INCLUDING JAMB KIT)		 FINISHED
WALL
THICKNESS








75mm or 100mm Timber		 WIDTH HEIGHT WIDTH HEIGHT WIDTH WIDTH WIDTH HEIGHT








100/125mm
DW DH A B C D E F
686 (2'3) 1981 (6'6) 1385 2042 685 700 661 1979
762 (2'6) 1981 (6'6) 1537 2042 761 776 737 1979
838 (2'9) 1981 (6'6) 1689 2042 837 852 813 1979
726 2040 1464 2101 724 740 700 2038
826 2040 1664 2101 824 840 800 2038
926 2040 1864 2101 924 940 900 2038
IMPORTANT ABOVE DIMENSIONS ARE +/-4mm
Installed on finished floor level
*When using 63mm 3 x2 CLS stud a 6mm ply sheet will need to be added to bring this up to 70mm
